200mm Effective Travel Length Double Optical Axis Guide Ballscrew SFU1605 with NEMA23 Stepper Motor for DIY CNC Router Parts X Y Z Linear Stage Actuator and 3D Printer
4.7 (70 items)
Limited Time SaleUS$53.28 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211776885 | Release Date | 2026/04/04 | List Price | US$35.52 | Model Number | 211776885 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Stepper motor Parameter: Step angle: 1.8 degree Motor flange size: 57mm Motor length: 56mm Holding torque: 1.2N.m Current: 3ADriving Voltage: suggest 24V Resistance: 0.8 ohm Inductance: 2.4 mH Rotor Inertia: 440g.cm Lead wire: 4pcs Wiring: Red: A+ Green: A- Yellow: B+ Blue: B- Linear Stage Actuator Parameter: Effective Travel Length: 200mm Total length :376mm Type: Optical axis system moulde Ballscrew type: SFU1605 (diameter:16mm, pitch of screw:5mm) Level ballscrew: c7 Weight: 2763g Package Content: 1pcs Optical Axis Actuator with NEMA23 Stepper Motor
- 【Load】High precision, heavy load resistance SFU1605, Horizontal maximum load capacity: 30kg; Vertical maximum load capacity: 15kg
- 【Accuracy】Repeat positioning accuracy of ± 0.03mm
- 【Speed】Speed: 0-100mm/s

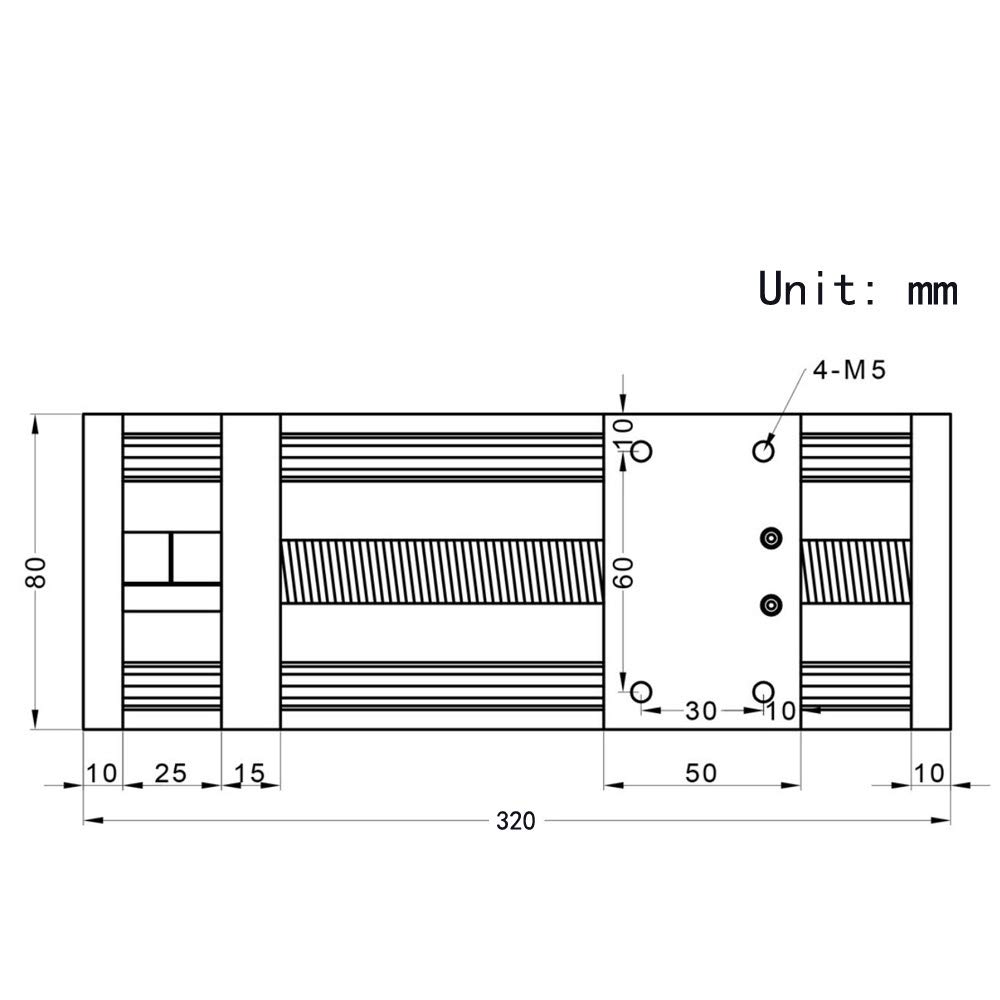

- 【Install】4pcs M5 threaded hole to fix the workpiece
- 【Effective Travel】Effective stroke:200mm, Lead:5mm ( The lead screw moves 5mm in one turn)
| UPC | 191170846694 |
|---|---|
| Model | BE093-2-fba |
| Speed | 100 RPM |
| Voltage | 24 Volts |
| Brand Name | Befenybay |
| Item Weight | 15 Kilograms |
| Manufacturer | Befenybay |
| Material Type | Aluminum |
| Shaft Diameter | 5 Millimeters |
