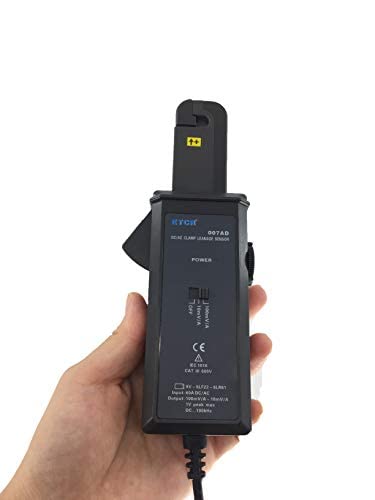

AC DC Clamp Current Sensor Probe ETCR007AD 0mA~50A Measurement Range Current Meter Tester with BNC Plug Output Interface

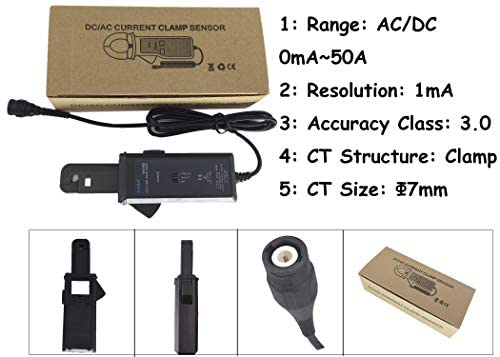

Main Function: 1：AC/DC current、phase、power energy、power、power factor measuremente etc. 2：Range: AC/DC 0mA~50A 3：Resolution: 1mA 4: Accuracy Class: 3.0 5: Output Signal: 10mV/1A or 100mV/1A (Manual shift) 6: Safety Class: CATⅢ600V 7: CT Structure: Clamp 8: CT Size: Φ7mm Technical Specifications Power Supply:9V DC 6F22(battery not included) CT Size:Φ7mm Range:0mA～50A AC/DC Output Signal:10mV/1A or 100mV/1A (manual shift) Resolution:1mA Accuracy Class:±3.0% Phase Error:≤3° Output Method:Current sensing output Output Interface :1.5m shield wires, the terminal interface: BNC plug Clear Function:Press the ZERO key to clear Frequency:DC ~400Hz Safety Class:CATⅢ600V Working Temperature:-15℃～50℃ Insulating Strength:AC3700V/rms (between the core and coil) Weight:170g Dimension:168mm×61mm×32mm

• ❤❤(1)ETCR007AD AC/DC Leakage Clamp Current Sensor suitable for high-accuracy AC and DC current and leakage current detection below 600V.
• ❤❤(2)Measurement Range: AC/DC 0mA~60A, Resolution: 1mA,corresponding output AC/DC 0~600mV, jaw size is Φ7mm.
• ❤❤(3)The sensor adopts the clamp-shaped CT structure, which can be measured without disconnecting the measured circuit.
• ❤❤(4)The slim design of the clamp head is particularly suitable for the place where the cables are densely packed. Non-contact measurement method is adopted, and the operation is safe and simple.
• ❤❤(5)The permalloy iron core is used, and the anti-interference ability is strong to ensure the accuracy of measurement. stability.
