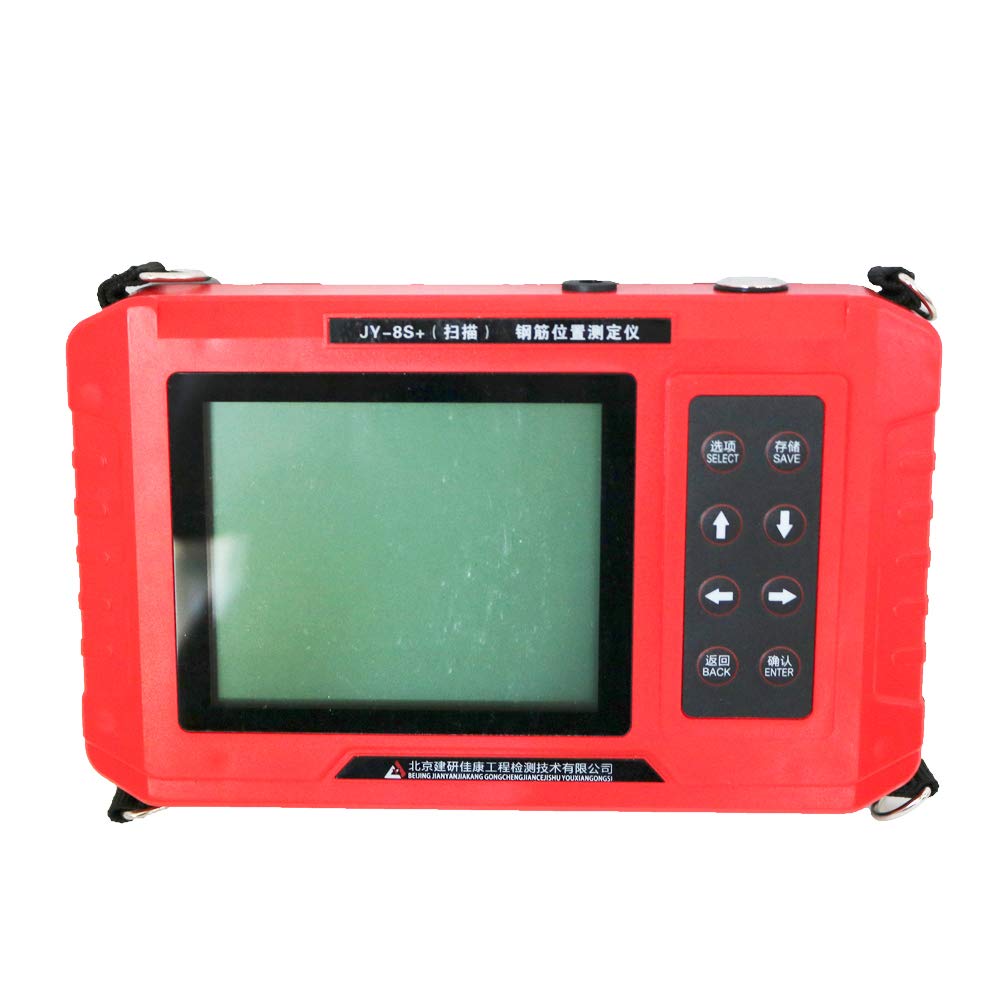

JY-8S+ Integrated Concrete Rebar Locator Scanner with Steel Bar Grid Function JY-8S Plus Concrete Rebar Diameter Tester

1.With a portable scanning car2.With English manual in the package 3.Automatic calculation of reinforcement mesh distance4.Grid correction function5.Integrated probe, no need to replace in testing, fast test and calculation; detection depth up to 200mmMain features1. Accurate positioning of steel bars, detection of reinforcement diameter and protective layer thickness;2, the instrument has grid and profile scanning function to accurately detect the thickness of reinforcement cover.3. At the same time, the sensor can detect the diameter of steel bar and the thickness of the protective layer without exchanging the detection attitude. It can detect the diameter of the steel bar and the thickness of the protective layer quickly.4, the detection accuracy of steel bar diameter and protective layer thickness is high.5. It can visually display the grid and section images of reinforcing bars.6. The software interface is simple, and the operation is simple.Main technical indicators1. The range of adjustment of diameter of steel bar: 6mm ~ 50mmThe commonly used steel bar diameters are 6, 8, 10, 12, 14, 16, 18, 20, 22, 25, 28, 20, respectively.

• Detect the location and reinforcement of reinforcement in concrete structure. Estimate the diameter of the steel bar and the thickness of the protective layer at the same time.
• Detect the thickness of the protective layer of the reinforcement (known diameter); Detect the thickness of the protective layer of the steel bar under a measuring surface and display the grid.
• Detect the thickness of the protective layer of the reinforcing bar under a certain survey line and show the sectional reinforcement.
• The self correcting function of the probe;Check the storage and view function of the data.Transmit data function.
• JY-8S+ steel position measuring instrument can be used to test the construction quality of existing reinforced concrete engineering and new reinforced concrete structures: such as bridges, tunnels, civil air defense, structural safety assessment and appraisal. The position and reinforcement of steel bars are determined, the thickness of the concrete protection layer is detected by the known diameter, the diameter and mixing of the steel bar are simultaneously detected by the unknown diameter.
• The thickness of the protective layer of the soil and the function of the path scanning. In addition, the location of magnetic bodies and conducting bodies in non-magnetic and non-conductive media can be detected, such as cables and plumbing pipes in walls. The instrument is a nondestructive testing equipment with automatic detection, data storage and output function.
