Mean Well 200W Single Output Switching DC Power Supply Variable Power Supply 48V 4.4A, (LRS-200-48 48V/4.4A/211W/Enclosed Power)
4.6 (70 items)
Limited Time SaleUS$21.05 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211783029 | Release Date | 2026/04/04 | List Price | US$14.03 | Model Number | 211783029 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

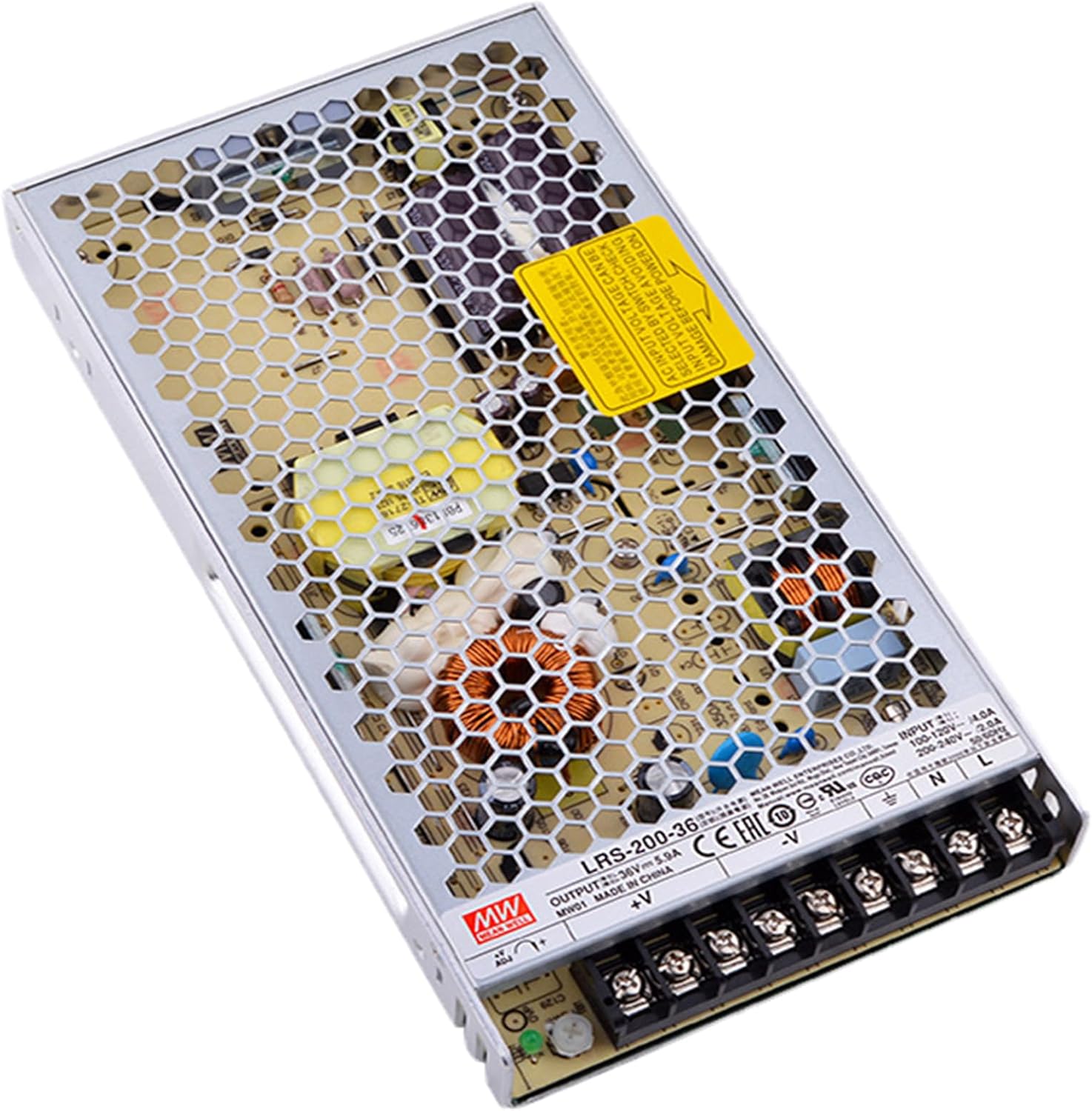

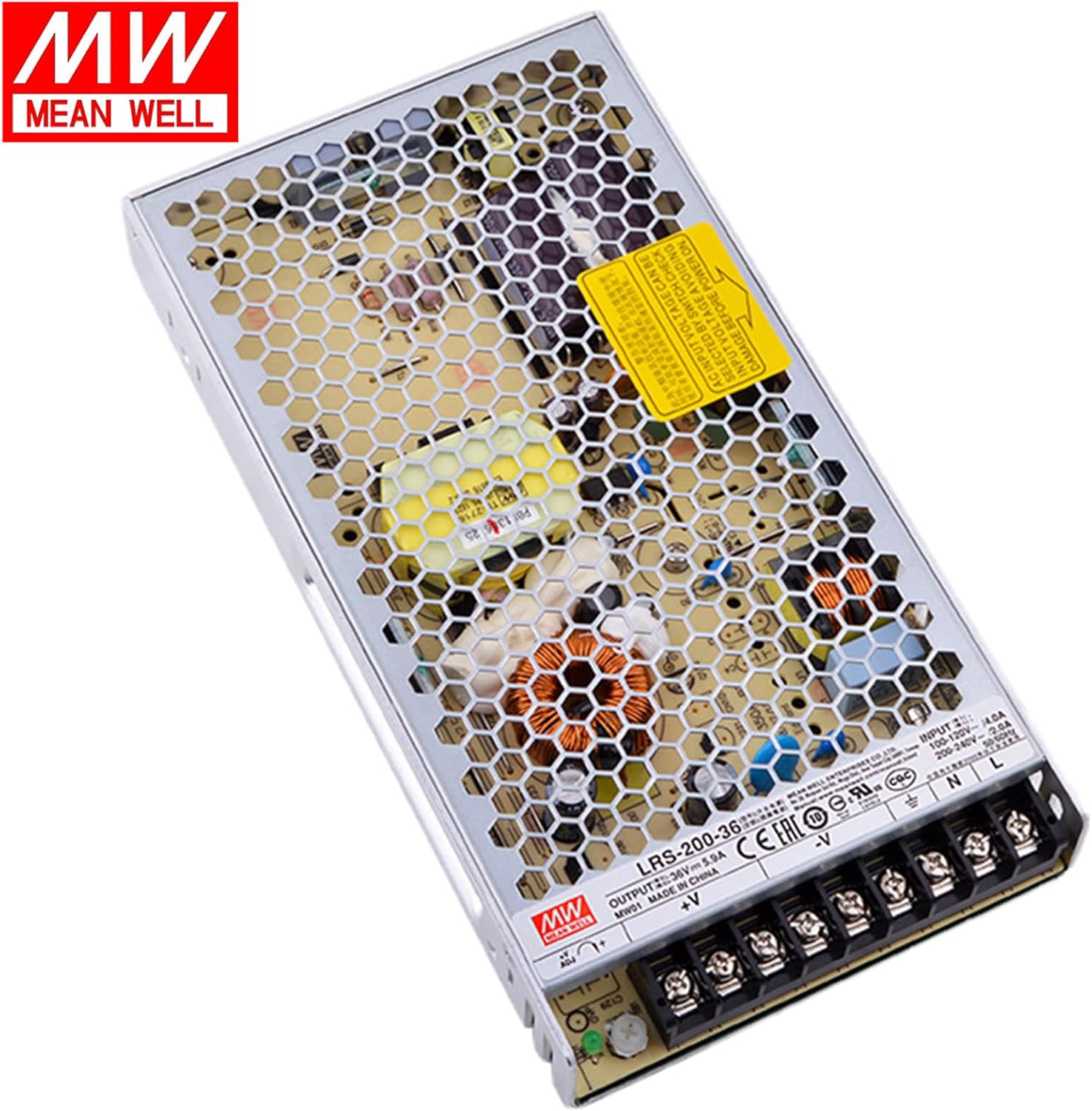

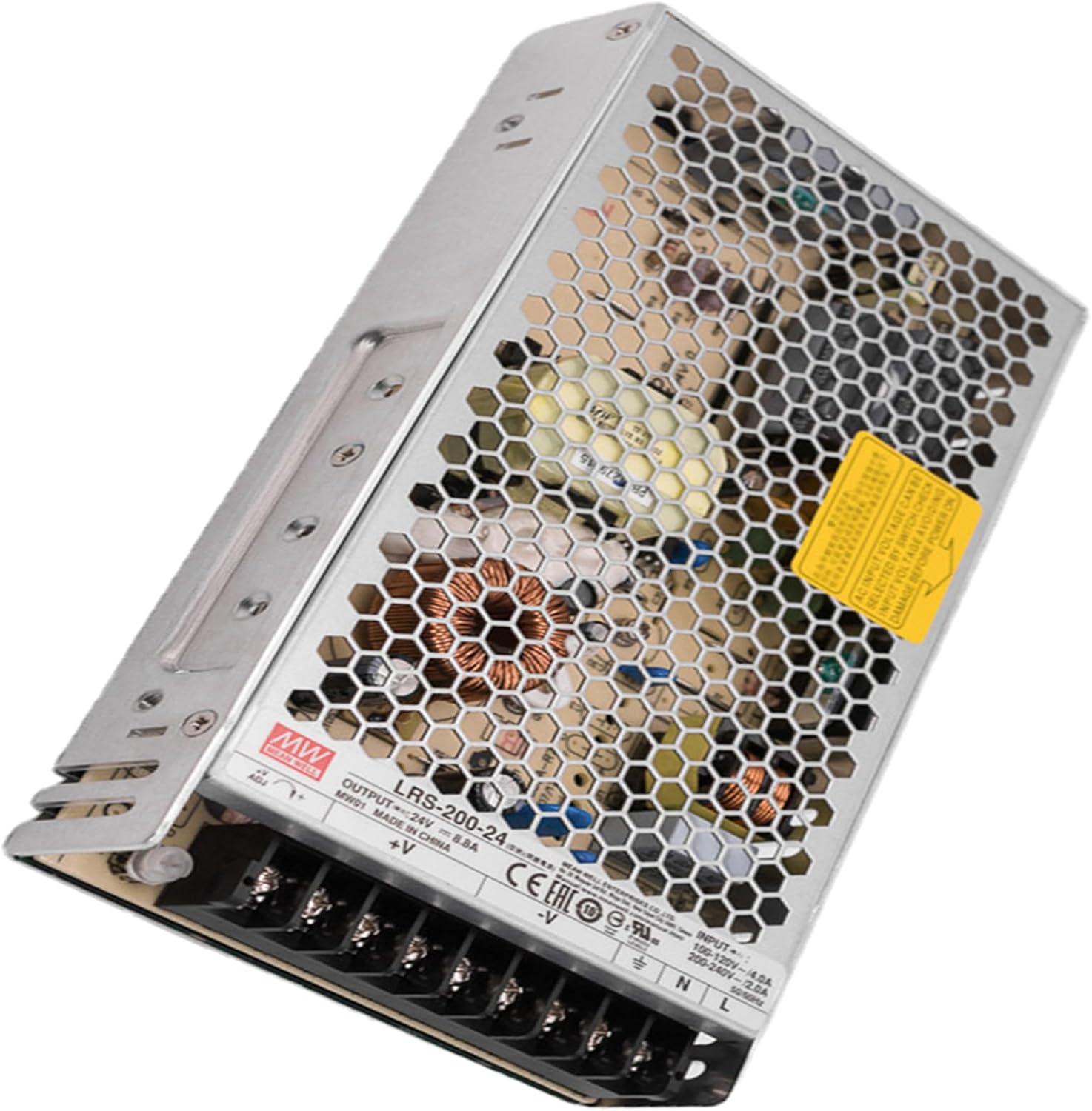

NEW, MEAN WELL Power Supply.LRS-200 series is a 200W single-output enclosed type power supply with 30mm of low profile design.Adopting the input of 115VAC or 230VAC (select by switch), the entire series provides an output voltage line of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V and 48V.In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of LRS-200 that the whole series operates from -25℃ through 70℃ under air convection without a fan.Delivering an extremely low no load power consumption (less than 0.75W), it allows the end system to easily meet the worldwide energy requirement.LRS-200 has the complete protection functions and 5G anti- vibration capability; it is complied with the international safety regulations such as IEC/UL 62368-1.LRS-200 series serves as a high price-to-performance power supply solution for various industrial applications.Founded in 1982, MEAN WELL is one of the world's few manufacturers dedicated to standard power supply products. It is ranked the 3rd in global power supply (DC output) makers according to a report by Micro Technology released in March, 2023. 99% of MEAN WELL sales are of standard power supply products sold under the MEAN WELL brand name. The other two companies' products are ODM/OEM.
- AC input range selectable by switch
- Withstand 300VAC surge input for 5 second
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- 1U low profile
| Brand | FuDianMall |
|---|---|
| Wattage | 200 watts |
| Model Name | MEAN WELL Power Supply |
| Item Weight | 1.5 Pounds |
| Manufacturer | Mean Well |
| Model Number | LRS-200-48 48V/4.4A/211W/Enclosed Power |
| Cooling Method | Air |
| Output Wattage | 200 Watts |

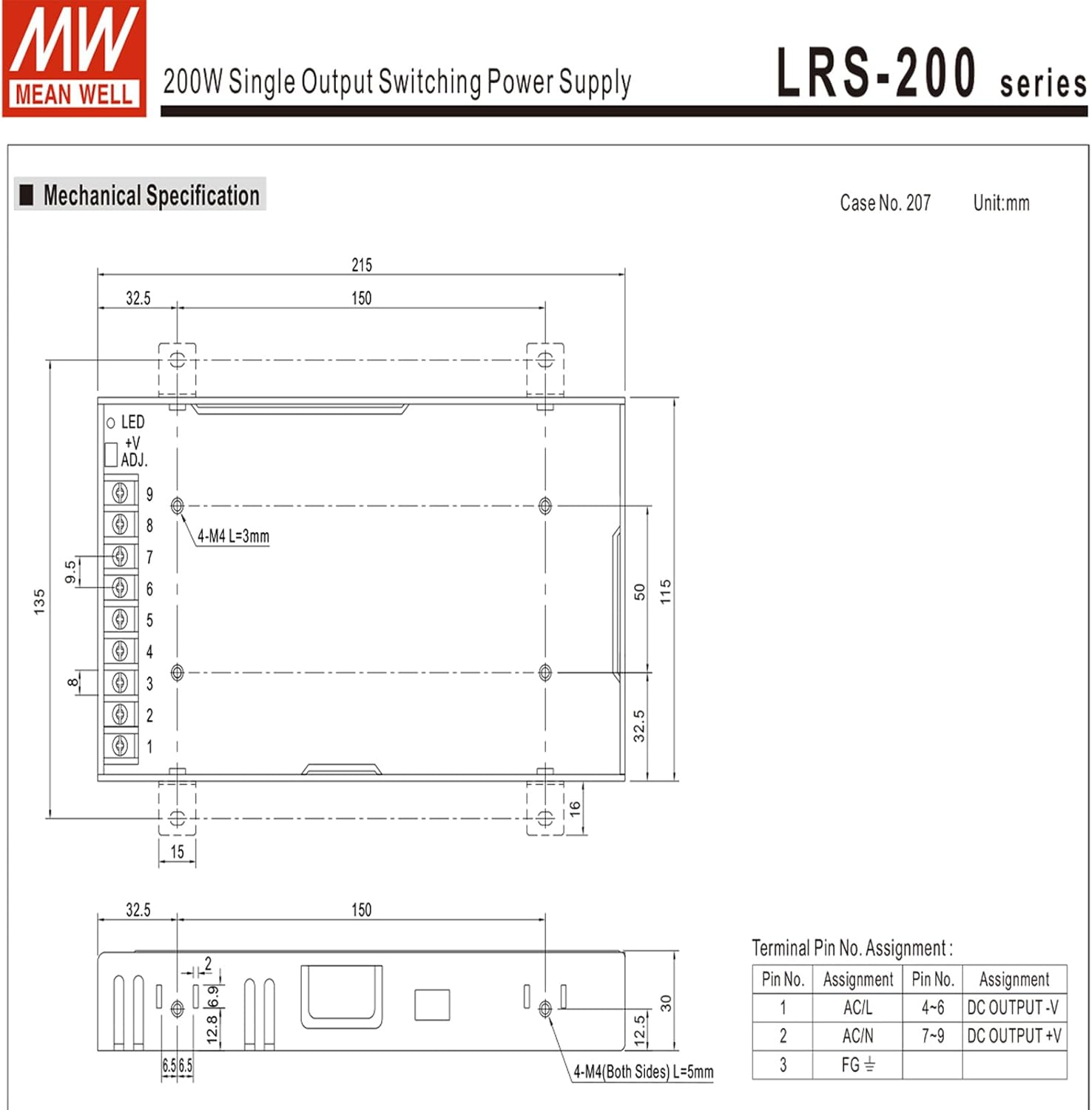

| Item Dimensions | 8.46 x 4.53 x 1.18 inches |
| Mfr Part Number | LRS-200-48 48V/4.4A/211W/Enclosed Power |
| Compatible Devices | Gaming Console |
| Warranty Description | 2 years warranty |
| Minimum Input Voltage | 115 Volts |
| Connector Type Used on Cable | ATX |
